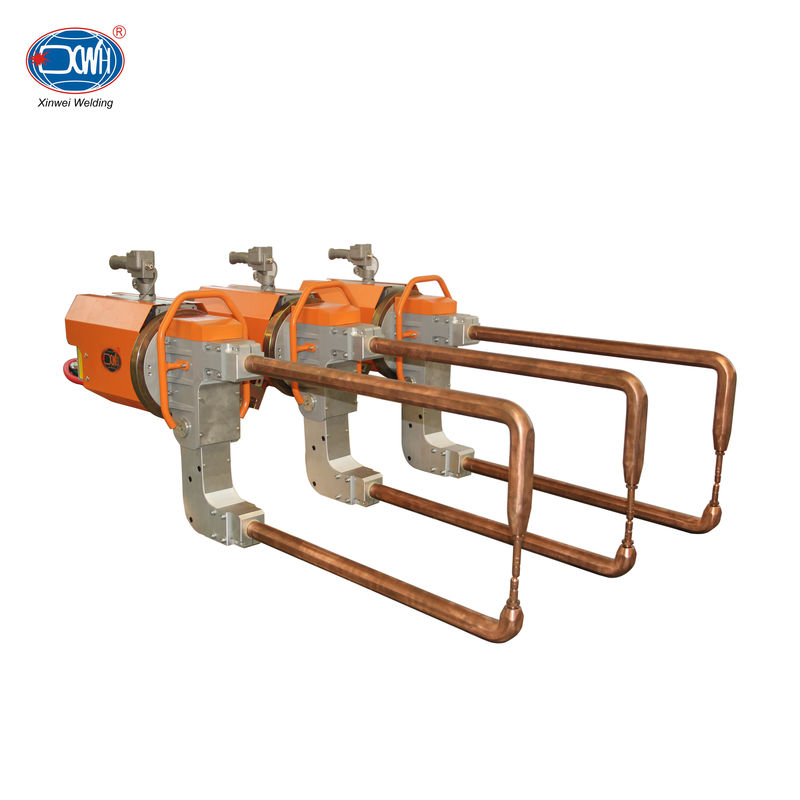

| Product Name: | Hand-Held Portable Spot Welder IT Gun | Machine type: | Auto Repair Tools |
|---|---|---|---|
| Rated Capacity: | 35KVA | After Warranty Service:: | Video technical support, Online support, Spare parts, Field maint |
| Weight (KG): | 60 KG | Max. Welding Thickness: | 3.5+3.5mm |
| Rated Duty Cycle: | 50% | Voltage: | 380V |
| Menyoroti: | Mesin pengelasan titik portabel CCC,Mesin pengelasan titik portabel 380 volt,Mesin pengelasan titik senapan CCC |
||
Fitur
| Item/model | Satuan | DN2-35X | DN2-35C | DN2-45X | DN2-45C | DN2-65X | DN2-65C |
| daya pada 50% | KVA | 35 | 35 | 45 | 45 | 65 | 65 |
| Arus sirkuit pendek maksimum | KVA | 15 | 15 | 16 | 16 | 46 | 46 |
| Tegangan pembuangan sekunder | V | 5.7 | 5.7 | 6.3 | 6.3 | 8 | 8 |
| Tegangan pada 50Hz/60Hz | V | 380 | 380 | 380 | 380 | 380 | 380 |
| Jarak antara lengan | MM | 120-280
| 100 | 120-330 | 100 | 160-430 | 100 |
| Maks.kekuatan pada elektroda | N | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
| Kekuatan kerja | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke | MM | 50-120 | 60/100/140 | 50-120 | 60/100/140 | 50-120 | 60/100/140 |
| Panjang lengan | MM | 240-600 | 200 sampai 500 | 300-800 | 200 sampai 500 | 400-1100 | 200 sampai 500 |
| Suplai udara terkompresi | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Ketebalan maksimum lembaran baja ringan dengan lengan s | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| Dengan lengan 500mm | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| Dengan lengan panjang maksimum | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Maksimum kawat silang | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Penurunan tekanan air pendingin | MPA | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Aliran air pendingin | L/MIN | 12 | 12 | 12 | 12 | 12 | 12 |
