Detail produk:
|

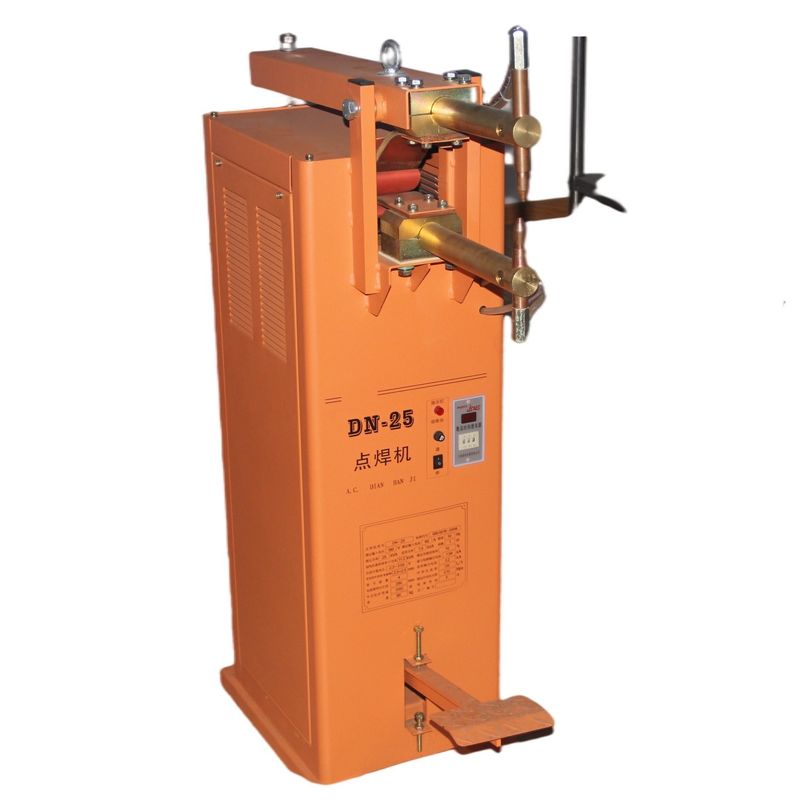

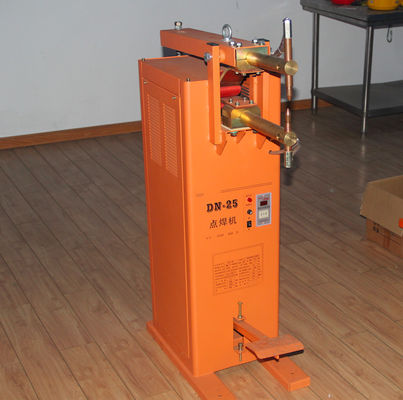

| Product name: | Welding Mini Spot Welder Foot Operated Spot Welding Machine Manual Spot Welding Machine | Frequency: | 50HZ/60HZ |
|---|---|---|---|
| Dimensions: | DN 10/16/25/35 | Welding time: | 0.1-1S |
| Lead Time: | 3-5days | COLOR: | Customized |
| Machinery Test Repo: | Provided | Size: | 450mm |
| Menyoroti: | Mesin pengelasan titik manual 16KVA,Mesin pengelasan titik manual CE,Pemanas spot yang dioperasikan kaki CE |
||
| Model Artikel | DN-35 | DN-25 | DN-16 | DN-10 |
| Daya nominal 50% | 35KVA | 25KVA | 16KVA | 10KVA |
| Daya Utama Nominal | 380V | 380V | 380V | 380V |
| Listrik utama nominal | 92A | 66A | 42.1A | 26.3A |
| Siklus Tugas Nominal | 10% | 10% | 10% | 10% |
| Tegangan Pembuangan Sekunder | 2.6 ∙ 4.2V | 2.3 ∙ 3.55V | 1.98 ∙ 3.01V | 1.65 ∙ 2.4V |
| Peraturan Berkualitas | 4 | 4 | 4 | 4 |
| Pengaturan Waktu Las | 0 ¢ 9,99 | 0 ¢ 9,99 | 0 ¢ 9,99 | 0 ¢ 9,99 |
| Panjang lengan | 280mm | 280mm | 280mm | 260 mm |
| Kapasitas Pengelasan | 3.5+3.5mm | 2.5 + 2.5mm | 2+2mm | 1.5+1.5mm |
| Cara Pendingin | Transformer utama: Udara Elektrod: Air | |||
